Visual control reference

Updated for goThoom test 60 · Clan Lord 1501 · September 16, 2026

Real client windows, with explanations of behavior and tradeoffs that are easy to miss. These examples use the default theme and illustrative data. Installed voices, resources, and your settings may change what is available.

Numbered callouts explain when an option helps, what it affects, and why it may behave unexpectedly. Straightforward controls are left unboxed. Expand menu options and slider ranges when you need values that are not visible in the screenshot.

Jump to a window

Settings: Display

Settings: Display. Highlighted controls: UI Scale; Reset Windows.
Settings → Display
  1. 1

    Use this when buttons, menus, and window controls are all too small. If only the conversation is hard to read, increase Chat Window Font Size in the Text tab instead; that gives you larger text without enlarging every panel. This slider takes effect when you press Apply.

  2. 2

    Use this to recover a lost panel or an awkward arrangement. It resets the window layout, not your graphics, audio, and other preferences.

Open full-size image
Menu options and slider ranges
ControlAvailable choices or range
UI Scale0.75–4
Toolbar PlacementInside Inventory · Inside Players
Color ThemeFollow system · AccentDark · AccentLight · Arcade · Candy · Coffee · Dusk · Forest · HighContrast · Midnight · NeonNight · Paper · SeaGlass
Style ThemeBorderless · Default · Flat · HighContrast · Outline · Rounded

Settings: World

Settings: World. Highlighted controls: Show recently on-screen group; Show sharing icons in Players list.
Settings → World
  1. 1

    This keeps recently seen players easy to select after they leave the view. Being listed here does not mean a player is still on screen. Use the group to find a familiar name again, but check the game view before assuming they are still nearby.

  2. 2

    Names already indicate sharing: an underline means you share with that player, bold means they share with you, and both styles mean mutual sharing. This option adds icons without replacing those styles. Hover an icon if its direction is unclear. Italics indicate a clanmate and can appear with any sharing style.

Open full-size image
Menu options and slider ranges
ControlAvailable choices or range
Status bar opacity0.1–1
Max Night Level0–100
Name Background Opacity0–1
Player Health DisplayColor bar · Classic name color
Color Bar PositionAbove name · Below name
Modern Bar Thickness1–8

Settings: Text

Settings: Text. Highlighted controls: Chat Window Font Size.
Settings → Text
  1. 1

    Chat, Console, overhead names, and speech bubbles have independent font sizes. If you separate Chat from Console and one looks smaller, adjust its own slider. Enlarging chat text also wraps lines sooner, so a wider message pane may make more difference than increasing the font again.

Open full-size image
Menu options and slider ranges
ControlAvailable choices or range
Name Font Size5–48
Inventory Font Size5–48
Players List Font Size5–48
Console Font Size4–48
Chat Window Font Size4–48
Chat Bubble Font Size4–48

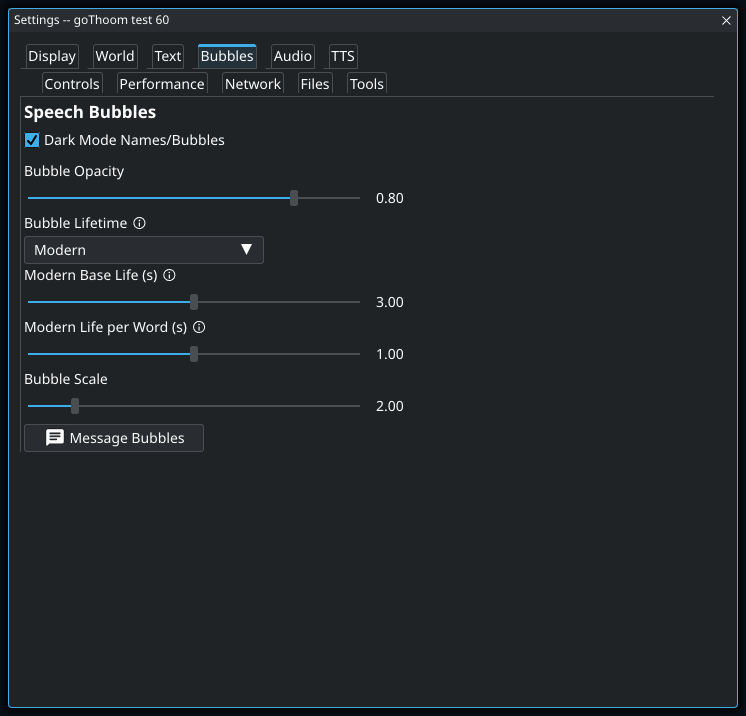

Settings: Bubbles

Settings: Bubbles. Highlighted controls: Bubble Lifetime.
Settings → Bubbles
  1. 1

    Modern mode adds reading time for each word, so a long sentence stays longer than a short one. Increase the base time if even short messages vanish too soon; increase the per-word time if only long messages are difficult to finish. Classic mode uses a fixed lifetime instead.

Open full-size image
Menu options and slider ranges
ControlAvailable choices or range
Bubble Opacity0–1
Bubble LifetimeModern · Classic
Modern Base Life (s)1–5
Modern Life per Word (s)0–2
Bubble Scale1–8

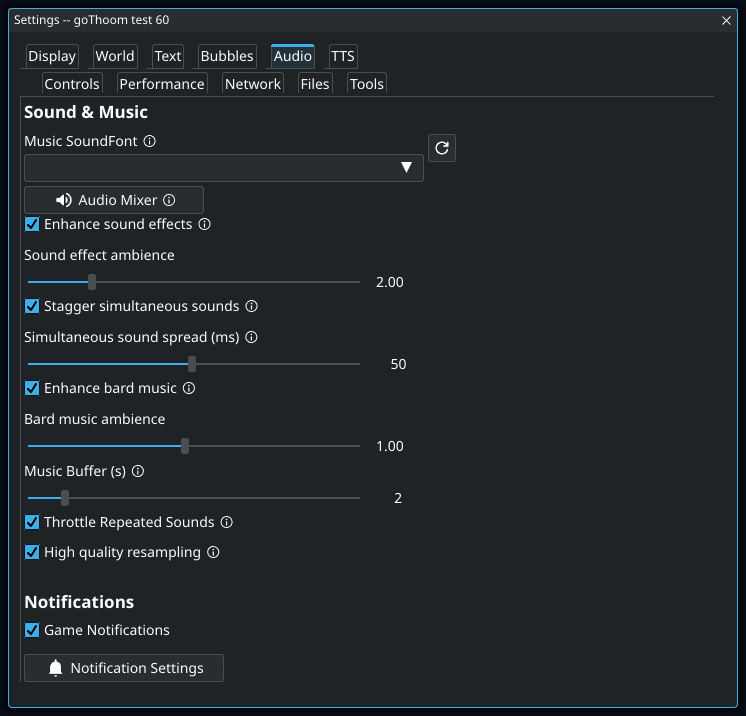

Settings: Audio

Settings: Audio. Highlighted controls: Music SoundFont.
Settings → Audio
  1. 1

    A SoundFont supplies the instrument sounds used for bard music. Changing it can change how the same tune sounds; it does not replace game sound effects or a Piper speaking voice. If the menu is empty, install a SoundFont through Files → Download Files.

Open full-size image
Menu options and slider ranges
ControlAvailable choices or range
Sound effect ambience0.1–10
Simultaneous sound spread (ms)1–100
Bard music ambience0.1–2
Music Buffer (s)1–10

Settings: TTS

Settings: TTS. Highlighted controls: TTS Voice.
Settings → TTS
  1. 1

    The voice menu is populated from installed Piper models. The empty menu in this example means a usable voice has not been found; enabling speech alone does not provide one. Download the TTS files, select a voice, then test a sentence before relying on spoken chat. The Audio mixer controls speech volume separately.

Open full-size image
Menu options and slider ranges
ControlAvailable choices or range
TTS Speed0.5–2

Settings: Controls

Settings: Controls. Highlighted controls: Input bar always open.
Settings → Controls
  1. 1

    With this off, Enter opens the input bar and Enter again sends the message. With it on, you can begin typing without first opening the bar. Chat and Console share one draft and sent-message history, so switching between their input bars does not give you a second independent message.

Open full-size image
Menu options and slider ranges
ControlAvailable choices or range
Keyboard Walk Speed0.1–1

Settings: Performance

Settings: Performance. Highlighted controls: Quality preset.
Settings → Performance
  1. 1

    A preset changes several graphics choices together. Use it as a starting point, then adjust individual effects while comparing the same scene. Selecting another preset can replace that tuning, so choose the preset before making detailed changes. UI and text sizing are controlled elsewhere.

Open full-size image
Menu options and slider ranges
ControlAvailable choices or range
Quality presetLowest · Low · Medium · High · Ultra · Custom
Artwork scale override2–4
Artwork upscale styleOff · Crisp · Balanced · Smooth · Ultra Smooth
Obscuring Object Opacity0.25–0.7
Sprite Gamma1.8–2.4
Monitor Gamma1.8–2.4
Sharpness0–100
Denoise strength0–50

Performance: Artwork

Performance: Artwork. Highlighted controls: Use sprite pack files.
Settings → Performance → Artwork
  1. 1

    This uses replacement PNGs you have installed in an hdimg folder; enabling it does not download a pack. The original picture size and placement stay the same. Turn it off to compare with the original artwork. Animated Replacement Effects have their own switch in Lighting & Effects.

Open full-size image
Menu options and slider ranges
ControlAvailable choices or range
Quality presetLowest · Low · Medium · High · Ultra · Custom
Artwork scale override2–4
Artwork upscale styleOff · Crisp · Balanced · Smooth · Ultra Smooth
Obscuring Object Opacity0.25–0.7
Sprite Gamma1.8–2.4
Monitor Gamma1.8–2.4
Sharpness0–100
Denoise strength0–50

Performance: Motion

Performance: Motion. Highlighted controls: Character Animation Blending.
Settings → Performance → Motion
  1. 1

    This blends between a character’s animation poses. It is separate from smoothing the character’s movement across the screen. If walking feels smooth but the character looks smeared during pose changes, shorten the character blend duration or disable this option while leaving Smooth Motion on.

Open full-size image
Menu options and slider ranges
ControlAvailable choices or range
Quality presetLowest · Low · Medium · High · Ultra · Custom
Character Animation Blend Duration0.1–1
World Animation Blend Duration0.1–1

Performance: Lighting & Effects

Performance: Lighting & Effects.
Settings → Performance → Lighting & Effects
Menu options and slider ranges
ControlAvailable choices or range
Quality presetLowest · Low · Medium · High · Ultra · Custom
Flame Flicker Strength0–200
Light Strength0–200
Glow Strength0–200
Character Shadow Darkness1–200

Performance: Caching

Performance: Caching.
Settings → Performance → Caching
Menu options and slider ranges
ControlAvailable choices or range
Quality presetLowest · Low · Medium · High · Ultra · Custom
Sprite cacheMinimal · Compact · Balanced · Generous · Maximum

Performance: Power Saving

Performance: Power Saving. Highlighted controls: Always power save.
Settings → Performance → Power Saving
  1. 1

    This applies the power-saving frame rate even while you are using the client. If the game seems capped below the rate you expected, check this before reducing graphics quality. Power save in background applies when the client loses focus; the two settings serve different situations.

Open full-size image
Menu options and slider ranges
ControlAvailable choices or range
Quality presetLowest · Low · Medium · High · Ultra · Custom
Power-save FPS1–250

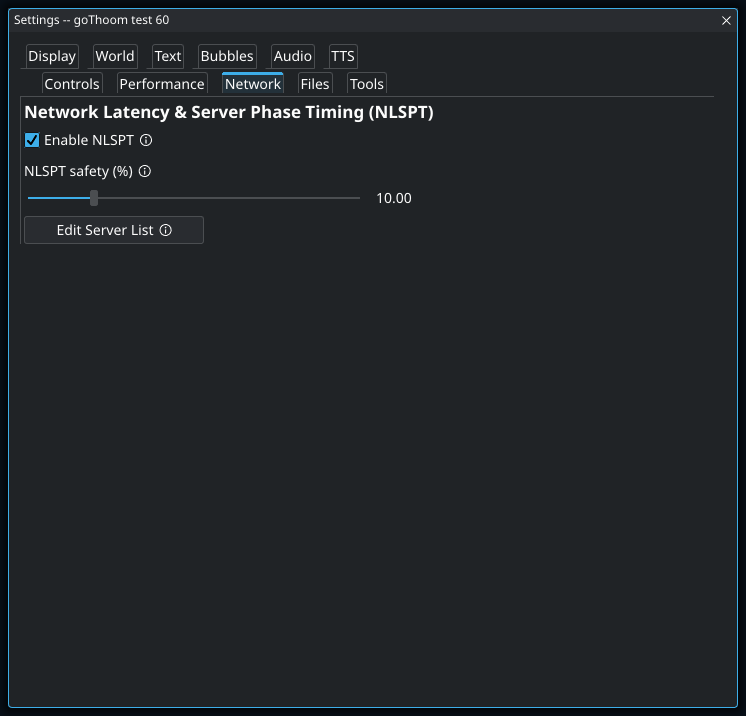

Settings: Network

Settings: Network. Highlighted controls: NLSPT safety (%).
Settings → Network
  1. 1

    This adjusts the safety margin for Network Latency & Server Phase Timing, not your internet connection speed. It is a session-only adjustment: it starts at 10% when the client launches and is not saved in settings. Leave the default in place unless you are deliberately comparing timing behavior.

Open full-size image
Menu options and slider ranges
ControlAvailable choices or range
NLSPT safety (%)0–50

Settings: Files

Settings: Files.
Settings → Files

Settings: Tools

Settings: Tools.
Settings → Tools

Effects preview controls

Effects preview controls. Highlighted controls: Animation rate.
Settings → Tools → Debug Settings → Open Effects Preview
  1. 1

    Use this to match the original sprite’s animation cadence when comparing it with a shader. UPS means original-animation updates per second, not displayed frames per second. The shader remains smooth between updates, and this preview setting does not change live gameplay.

Open full-size image
Menu options and slider ranges
ControlAvailable choices or range
EffectAll effects · Healing · Fire Plume · Violet Fire Plume · Green Fire Plume · Blue Fire Plume · Critical Blood Gush · Aqua Flag · Red Flag · Yellow Flag · Violet Flag · White Flag · Gold Flag · Wall Torch · Wall Torch (mirrored) · Hidden Path Sparkles · Hidden Path Fading · Mystic Ward · Amber Orbit Ward · Lava Pool (compact) · Lava Pool (large) · Neutral Magic Ring · Green Magic Ring · Red Magic Ring · Magenta Magic Ring · Yellow Magic Ring · Cyan Magic Ring · Town Puddle (small) · Town Puddle (large) · Shore Foam (east) · Shore Foam (west) · Shore Foam (north) · Shore Foam (south) · Ward Fading · Gold Teleport · Blue Teleport · Prismatic Teleport · Stone Form · Coin 123
DisplayNew effect only · Original animation · Original + new effect
ScaleAt real size · 200% size · Full window size
Animation rate1 UPS · 2 UPS · 5 UPS · 10 UPS · 20 UPS · 30 UPS

Arrange tiled windows

Arrange tiled windows. Highlighted controls: Auto-size side panels.
Settings → Display → Window Layout
  1. 1

    Extra width beside the playfield can become wider lists instead of empty space. With automatic sizing on, dragging either game divider slides the game sideways and moves both dividers together. Turn it off to keep the current sizes and resize each side independently. Turning it back on recalculates around the game’s current position.

Open full-size image
Menu options and slider ranges
ControlAvailable choices or range
Start withCurrent arrangement · Game centered · Game on a side · Messages below game · Messages above game · Messages above and below · Full-width messages below · Full-width messages above · Messages left, lists right
Move selected paneSwap · Left of · Right of · Above · Below

Separate message panes

Separate message panes. Highlighted controls: Move selected pane.
Settings → Display → Window Layout
  1. 1

    Here Chat is selected and Above is chosen. Clicking Console in the preview will put Chat above Console. Choosing an action alone does not move a pane; click a source and then a target. Undo restores the previous editor arrangement, and the real workspace dividers control the final sizes.

Open full-size image
Menu options and slider ranges
ControlAvailable choices or range
Start withCurrent arrangement · Game centered · Game on a side · Messages below game · Messages above game · Messages above and below · Full-width messages below · Full-width messages above · Messages left, lists right
Move selected paneSwap · Left of · Right of · Above · Below

Add a character

Add a character. Highlighted controls: Password (optional).
Login → Add Character
  1. 1

    You can add the character without entering a password here. When you later press Connect, the client asks for it if no password is available for that login. Adding a character only creates a local login entry; it does not create a Clan Lord account.

Open full-size image

Audio mixer

Audio mixer.
Toolbar → Audio
Menu options and slider ranges
ControlAvailable choices or range
Sound effect enhancement strength. 1.00 is the normal enhanced mix.0.1–10

Notification settings

Notification settings.
Settings → Audio → Notification Settings
Menu options and slider ranges
ControlAvailable choices or range
Display Duration (sec)1–30

Speech bubble settings

Speech bubble settings.
Settings → Bubbles → Message Bubbles

Take a screenshot

Take a screenshot. Highlighted controls: Include name tags.
Tools → Snap
  1. 1

    This hides overhead names for the capture without changing your normal name-tag preference. It does not remove names from Chat, Console, or Players if you capture the entire client. Check those panels before sharing a screenshot of a private conversation.

Open full-size image
Menu options and slider ranges
ControlAvailable choices or range
CaptureGame view only · Entire client window
FormatPNG · JPEG

Change file locations

Change file locations. Highlighted controls: Copy existing files to the selected folder.
Settings → Files → File Paths
  1. 1

    Use copying when the new folder should start with your current files. Different files with the same destination names cause the move to fail rather than overwrite them. The client checks access and verifies the copy before saving the new path. Restart after a successful change so loaded assets and open logs use the new location.

Open full-size image

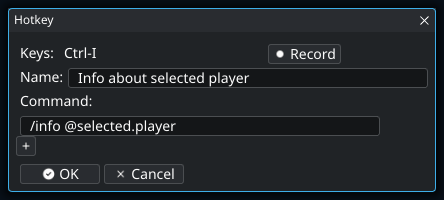

Create a hotkey

Create a hotkey. Highlighted controls: Command.
Actions → Hotkeys → +
  1. 1

    The selected player is resolved when you press the hotkey, not when you save it. This example can therefore inspect any player you select, using the same binding each time. It needs a selection in Players; the player beneath the pointer is a different context value.

Open full-size image

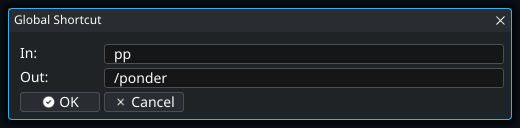

Create a text shortcut

Create a text shortcut. Highlighted controls: Expansion.
Actions → Shortcuts → Add For All
  1. 1

    Shortcuts expand the first word when you send a line. With this example, “pp hello” becomes “/ponder hello”; “hello pp” is not expanded. Choose a short word you are unlikely to start an ordinary message with by accident.

Open full-size image

Gamepad controls

Gamepad controls. Highlighted controls: Use standard controller layout when available; Walk Deadzone.
Settings → Controls → Gamepad
  1. 1

    Leave this on for a controller that exposes a standard layout: the South, East, and West face buttons become primary, secondary, and middle click. If the controller has no standard layout, focus each Click button field and press the physical button you want to assign.

  2. 2

    Increase the deadzone if the character drifts when you release the walk stick. Use the smallest value that stops the drift so gentle movement still registers. Cursor Stick has its own deadzone.

Open full-size image
Menu options and slider ranges
ControlAvailable choices or range
Walk Deadzone0.01–0.2
Cursor Deadzone0.01–0.2

Local streaming

Local streaming. Highlighted controls: Show cursor in stream.
Tools → Stream
  1. 1

    The operating-system pointer is not captured automatically. Enable this when viewers need to follow where you are pointing; goThoom draws a small cursor indicator into the stream output.

Open full-size image
Menu options and slider ranges
ControlAvailable choices or range
StreamGame render · Whole game window and UI
Resolution1280 × 720 (720p) · 1920 × 1080 (1080p) · 2560 × 1440 (1440p) · 3840 × 2160 (4K)
Frame rate15 FPS · 30 FPS · 60 FPS
Before loginShow splash screen · Black

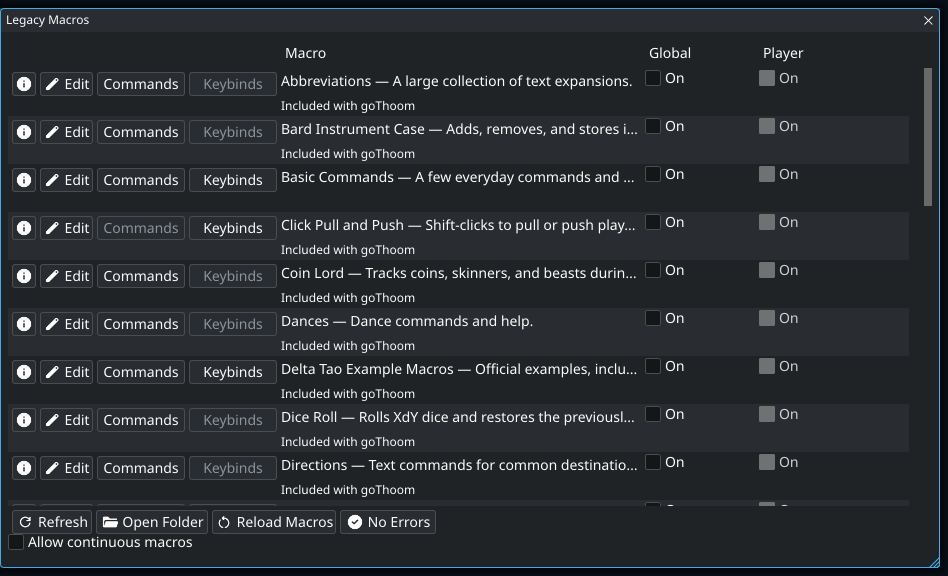

Legacy macro library

Legacy macro library.
Actions → Legacy Macros

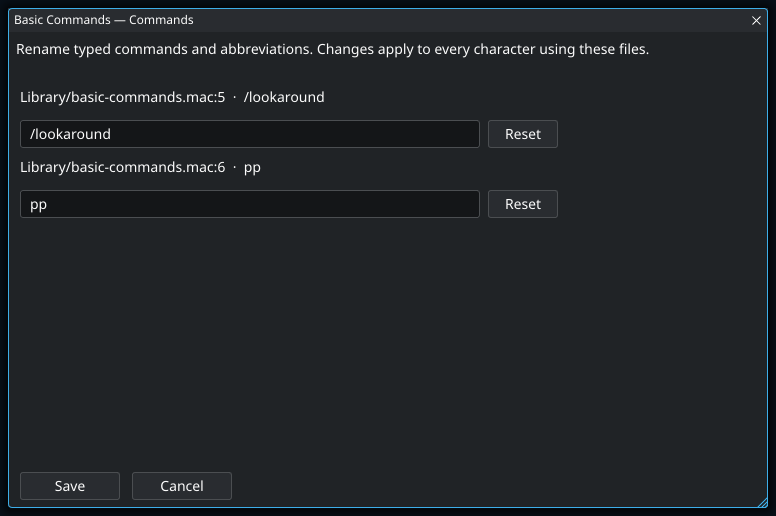

Edit macro command triggers

Edit macro command triggers.
Actions → Legacy Macros → Commands

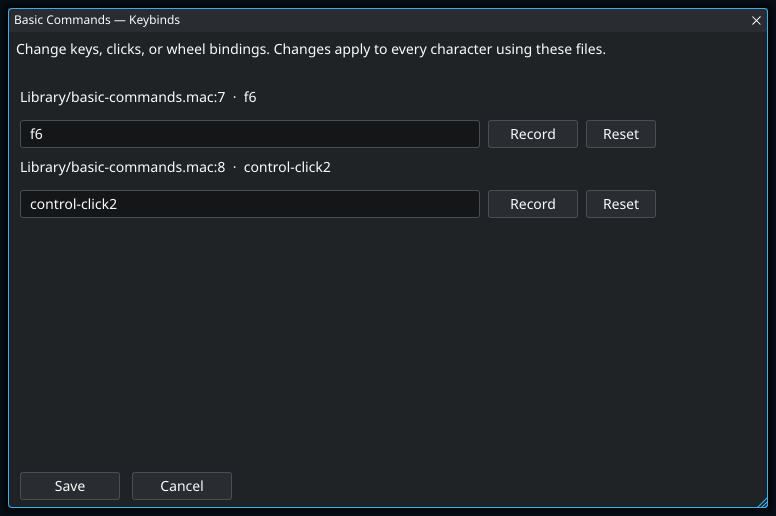

Edit macro keybindings

Edit macro keybindings.
Actions → Legacy Macros → Keybinds

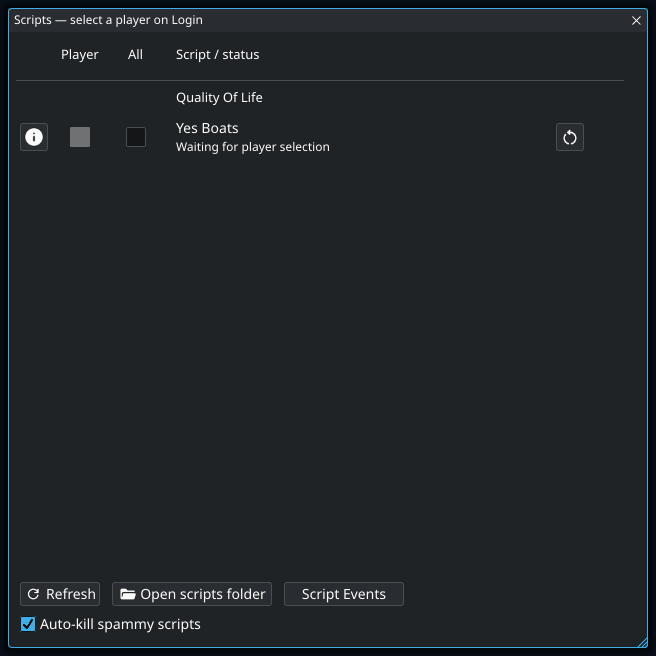

Enable scripts for a character

Enable scripts for a character.
Actions → Scripts

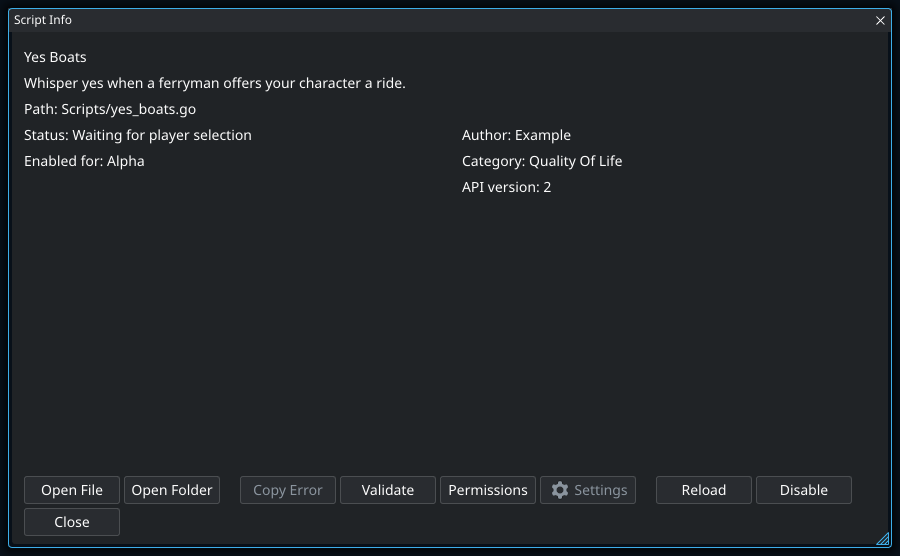

Review a script

Review a script. Highlighted controls: Reload.
Actions → Scripts → Info
  1. 1

    A reload can fail while the previous working copy continues running. Read the status and error before assuming your edited code is active. Validate can help find source problems; if the change requests additional access, review Permissions before trying again.

Open full-size image

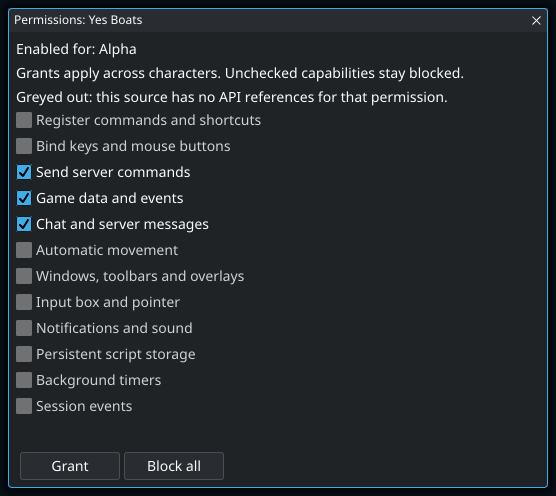

Grant script permissions

Grant script permissions. Highlighted controls: Send server commands; Grant.
Actions → Scripts → Info → Permissions
  1. 1

    Yes Boats sends a whisper as your character when it recognizes a boat offer addressed to you. This permission allows that reply; reading the offer and checking your character’s name require separate chat and game-data grants.

  2. 2

    Grant saves only the checked capabilities, and the decision applies to this script across characters. Unchecking something does not automatically adapt the script: a feature that depends on the denied capability may no longer work. Reopen Info → Permissions to change your decision; Block all also disables the script.

Open full-size image
